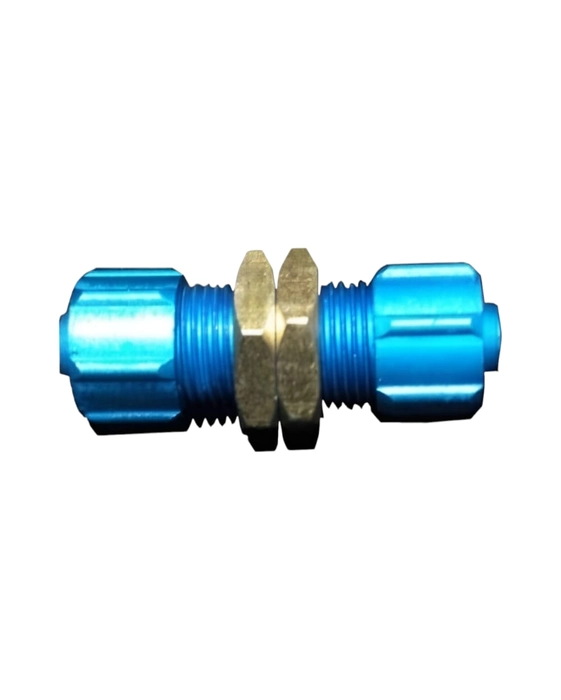

BULKHEAD CONNECTOR

A pneumatic bulkhead connector is a type of fitting used to pass an air line (tube or hose) through a panel, wall, or enclosure, creating a secure and leak-free connection on both sides. ??? Key Characteristics Function: It secures the tube and seals the hole in the barrier, allowing the air pressure signal or supply to continue across the enclosure. Design: Typically features a straight body with a threading or mounting nut in the middle to fasten it to the bulkhead. It has ports on either end to accept the pneumatic tubing, often using a push-to-connect (push-in) mechanism for quick and easy installation. Material: Commonly made from materials like nickel-plated brass or engineering plastics. Application: Essential in pneumatic control panels, machinery enclosures, and modular systems where air lines need to transition safely and neatly between interior and exterior components.
