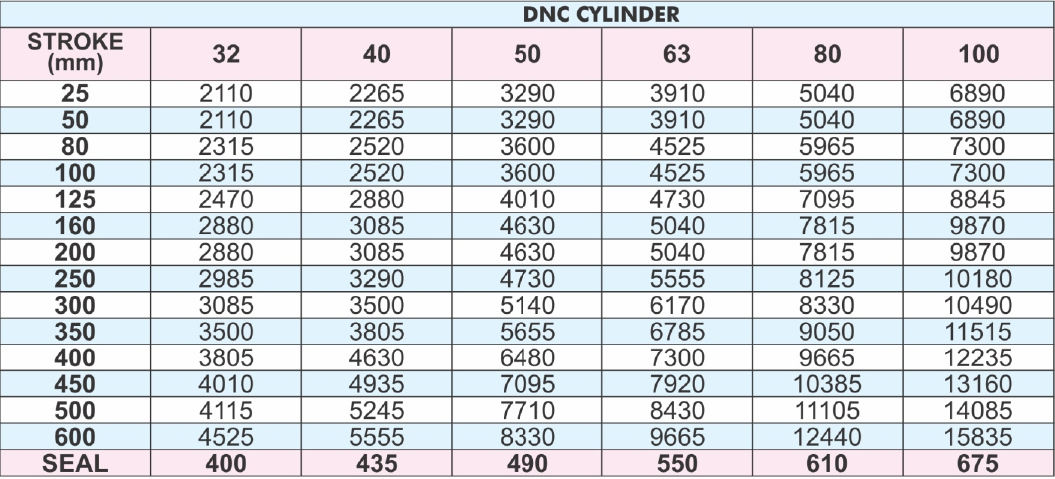

DNC CYLINDER

A Pneumatic DNC Cylinder (often referred to as an ISO 15552/VDMA 24562 standard cylinder) is a double-acting, tie-rod or profile design actuator that uses compressed air to generate linear motion (push and pull). Key Features Standardization: It adheres to the international ISO 15552 (formerly ISO 6431) and VDMA standards, ensuring interchangeability across various manufacturers. Design: Typically features a smooth aluminum profile body or a traditional tie-rod construction. Action: It is double-acting, meaning air pressure can be applied to both sides of the piston to extend and retract the rod, providing controlled movement in both directions. Sensing: It is designed to accept magnetic sensors that mount directly into grooves on the cylinder body, allowing for non-contact piston position detection for feedback and control.
