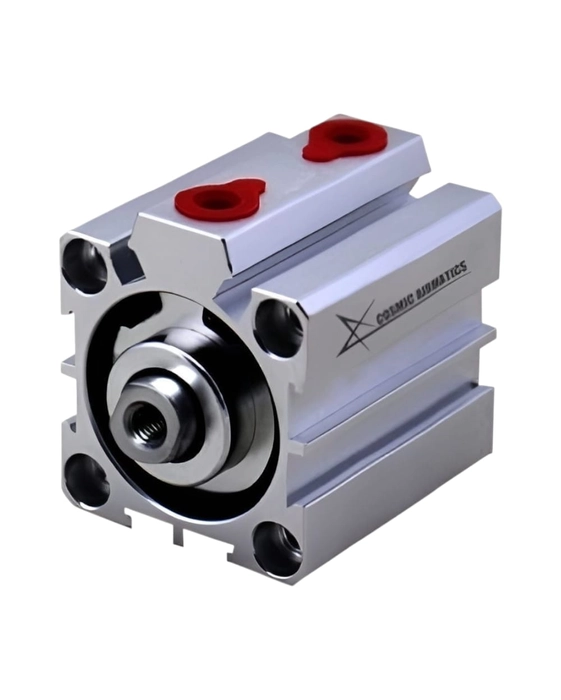

SDA CYLINDER

The Pneumatic SDA Cylinder is a type of compact air cylinder specifically designed for industrial applications where space is extremely limited. The "SDA" designation generally refers to a Compact, Double-Acting cylinder, although single-acting versions are also available. Key Features Compact Design: The most defining feature is its short, ultra-thin profile, which is significantly shorter than standard pneumatic cylinders of the same bore size. This is achieved through a specialized riveted construction of the cylinder body and end caps. Action: It is primarily Double-Acting, meaning compressed air is used to both extend and retract the piston rod, allowing force to be applied in both directions. Sensor Ready: Most SDA cylinders include integrated slots or grooves on the body for easy, non-contact mounting of magnetic proximity switches to detect the piston's position. Material: Typically constructed from aluminum alloy for a lightweight yet durable design. Use Cases SDA cylinders are widely used in automated machinery and industrial settings for tasks that require a small linear push/pull motion, such as: Clamping and Positioning in assembly jigs. Ejection and Transfer of small parts in packaging and material handling. Actuating simple mechanisms in tight spaces.
